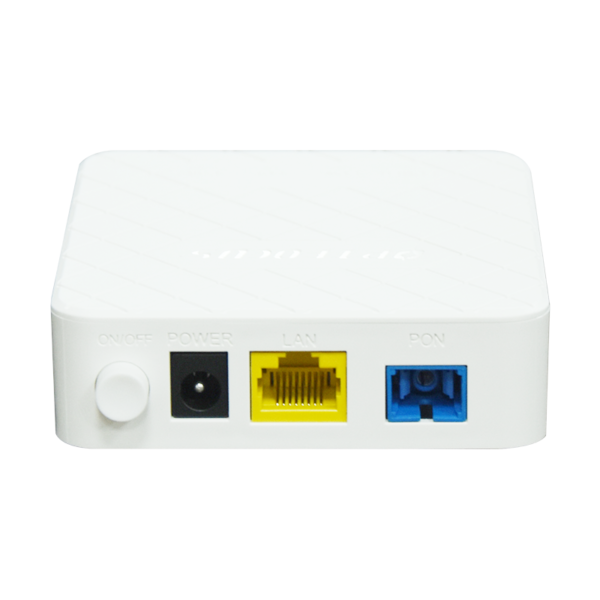

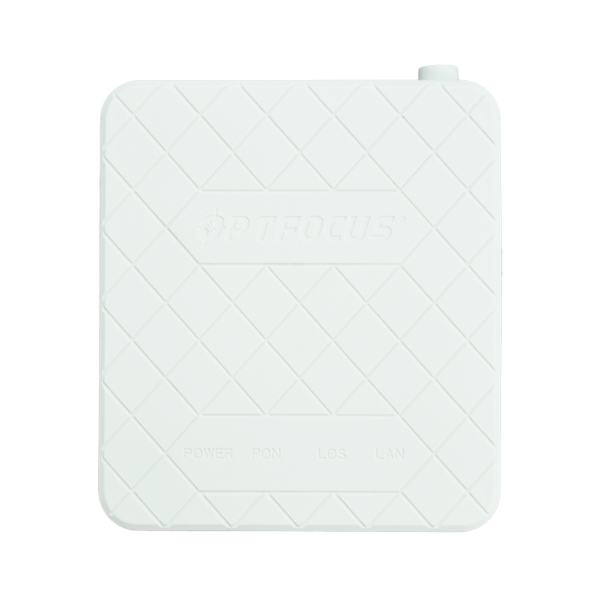

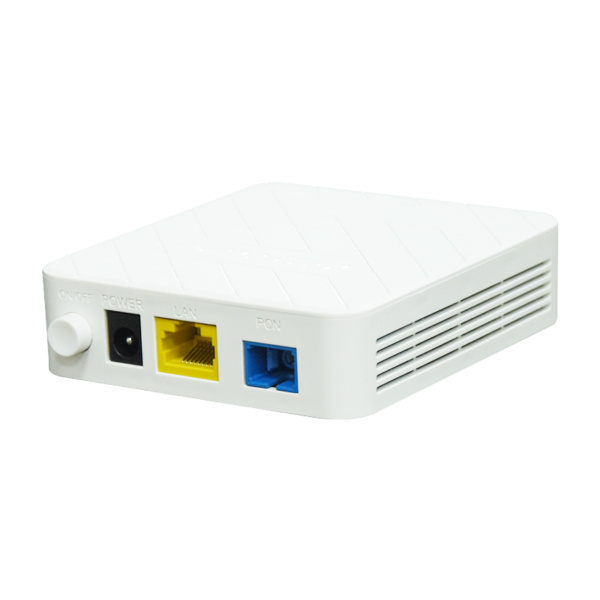

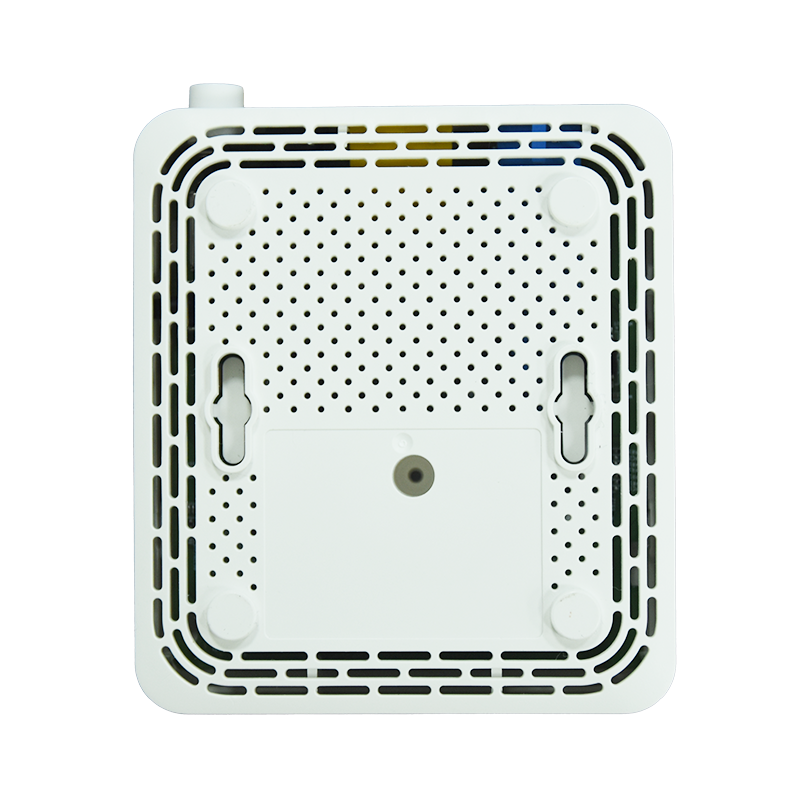

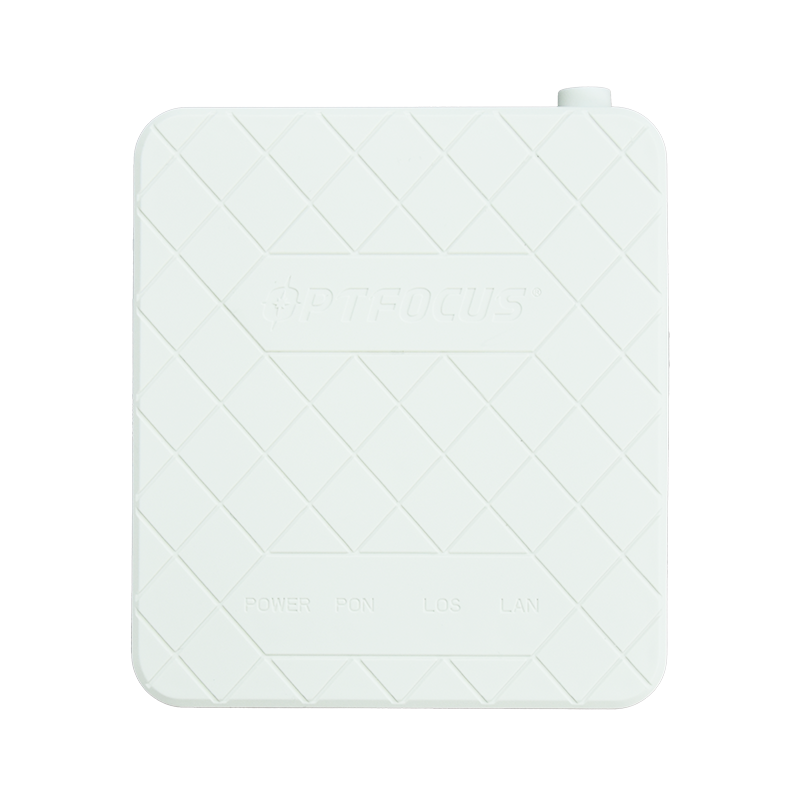

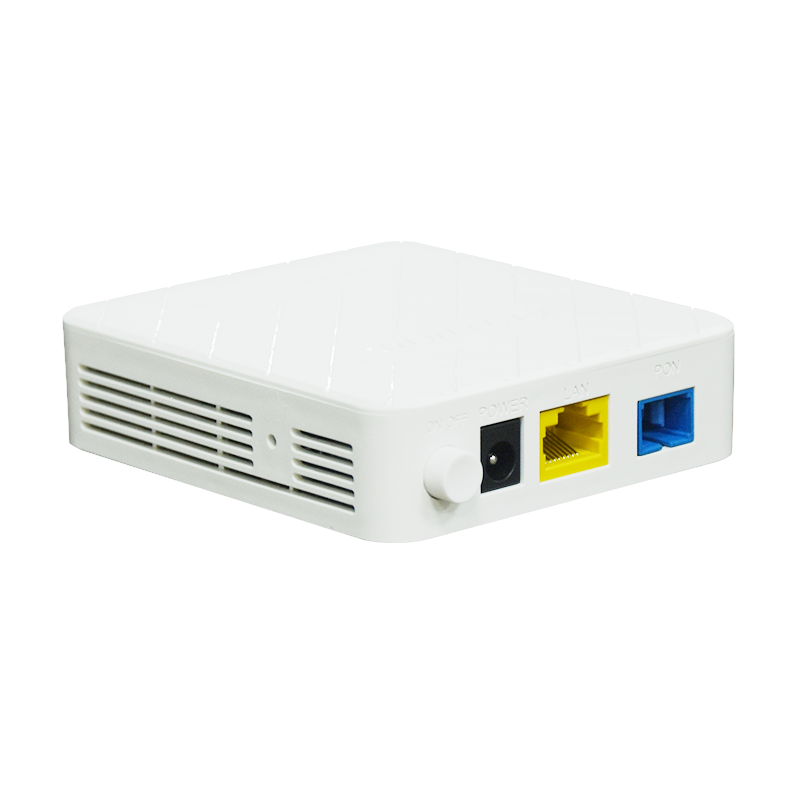

OFS-X7110 XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements.
It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
| Tech parameters | description |
| Up-link interface | 1 XPON interface， SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type ：SC/UPC
Optical power：0~4 dBm Sensitivity：-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm，RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 4 pcs |
| DC supply interface | input＋12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5～+55℃ |
| Humidity | 5～95%（non-condensation） |
| Storage temperature | -30～+70℃ |
| Dimension（MM） | 85*85*28mm（mainframe） |
| Weight | 0.24Kg（mainframe） |
| OFS-X7110 | 1*XPON(1490nm Rx,1310nm Tx,20Km,SC),1*10/100/1000Base-T,12V Power supply |
We R&D, manufacture, and sell optical communication access systems and terminal equipment. Now we’ve taken the lead in launching a number of original products in the industry, mainly including ONU/ONT, OLT, VoIP gateways, and other network access products, which are designed to meet the needs of telecom operators. We’re committed to helping broadband users worldwide enjoy an ultra-high-speed network!
